Material Type Width(A) Lenth(B) Thickness(D)
Material Type Width(A) Lenth(B) Thickness(D) Hole(CΦ)
Material Type Lenth(A) Width(B) Thickness(D)
Material Type Lenth(A) Width(B) Thickness(D)
Material Type Lenth(A) Width(B) Thickness(D) Coil form
Materials can be Changed according to your request
Ferrite NiZn F cores, SH cores, SR cores, SMB cores have a paramount advantage over other types of magnetic materials: high electrical resistively and resultant low eddy current losses over a wide frequency range. Additional Ferrite NiZn F cores, SH cores, SR cores, SMB cores characteristics such as high permeability and time/temperature stability, Low cost, large selection of materials, shape versatility, economical assembly, temperature and time stability, high resistibility, wide frequency range (10KHz to 50 MHz).
Ferrite NiZn F cores, SH cores, SR cores, SMB cores have expanded ferrite uses into transducer-core, quality filter circuits, high frequency transformers, wide band transformers, adjustable inductors, delay lines, and other high frequency electronic circuitry.

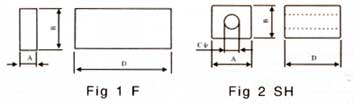

| NO. | TYPE | Fig | Dimensions(mm) | |||
|---|---|---|---|---|---|---|
| A | B | CΦ | D | |||
| 1 | F7X12X20 core | 1 | 7.00±0.20 | 12.0±0.30 | 20.0±0.40 | |
| 1 | SH3.5X3X5H1.3 core | 2 | 3.50±0.20 | 3.00±0.20 | 1.30±0.10 | 5.00±0.20 |
| 1 | SR1.5X1.5X6 core | 3 | 1.50±0.10 | 1.50±0.10 | 6.00±0.20 | |
| 2 | SR2.54X1.1X3.6 core | 3 | 2.45±0.10 | 1.10±0.10 | 3.60±0.20 | |
| 1 | SMB3X2.5X4 core | 4 | 3.00±0.20 | 2.50±0.20 | 4.00±0.20 | |
| 2 | SMB3X2.5X8.5 core | 4 | 3.00±0.20 | 2.50±0.20 | 8.50±0.20 | |
| 1 | SMF11X11X10(W) core | 5 | 11.0±0.30 | 11.0±0.30 | 0.65±0.10 | 10.0±0.30 |
| 2 | SMF7.6X5X10(W) core | 5 | 7.90±0.20 | 5.00±0.20 | 0.65±0.10 | 10.0±0.30 |
